Mowi 850 Forest Trailer
Small and agile forestry trailer for farmers and foresters!
The Mowi 850 has a 9-tonne load capacity and is Mowi’s smallest forestry trailer. This is an agile trailer suited to smaller tractors and is one of our bestsellers!
The trailer is equipped as standard with 400/60×15.5 wheels, trailer steering and telescopic outriggers. The load space up to the gate measures 2.0 m².

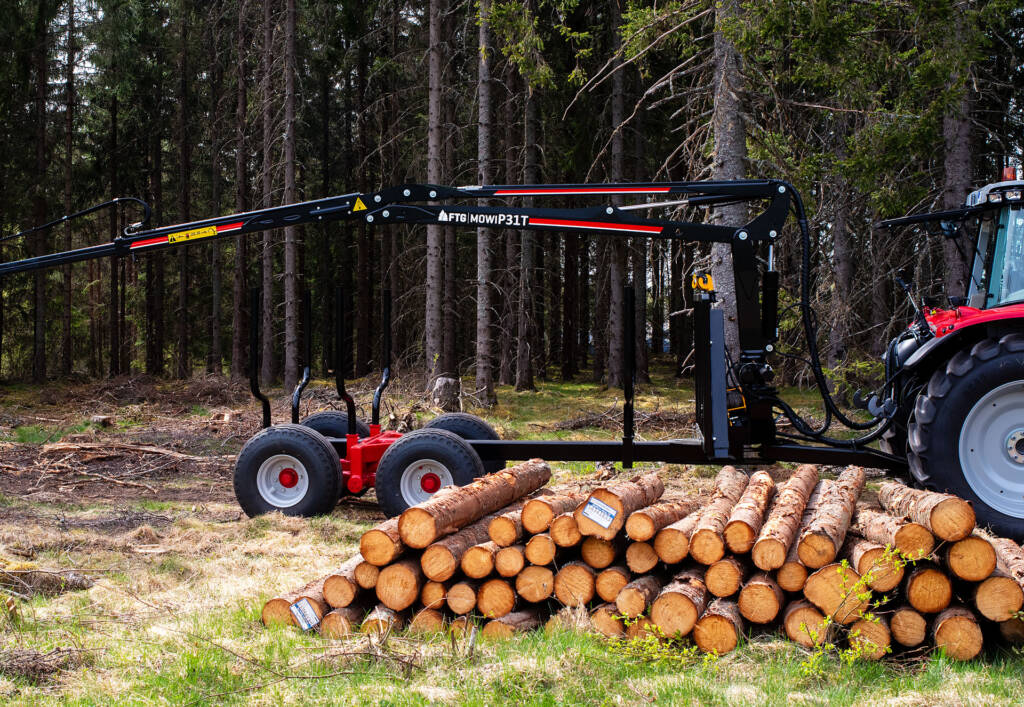

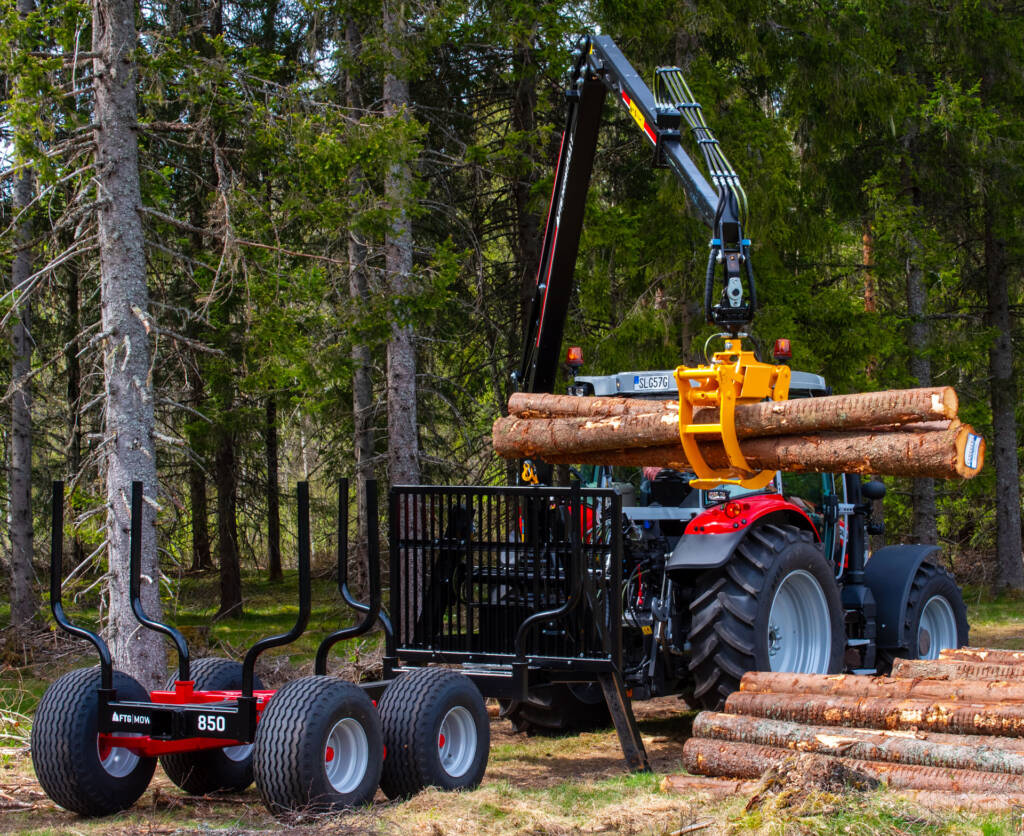

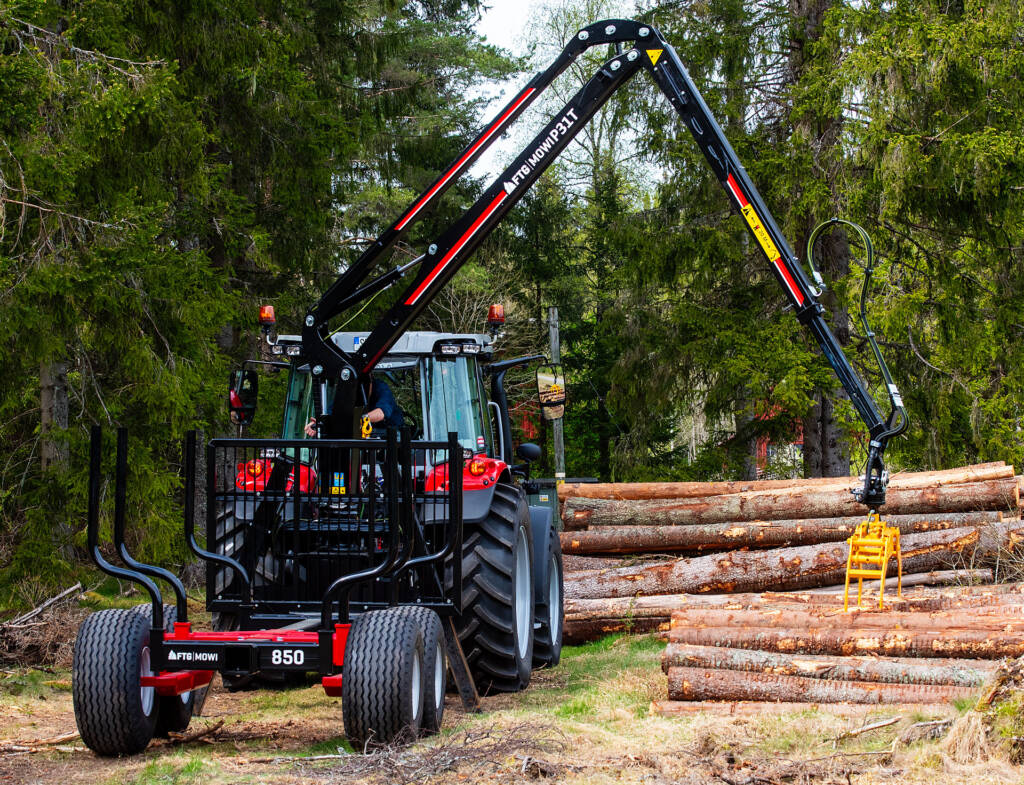

The basic version of the FTG Mowi 850 is equipped with a Mowi P25 parallel crane (5.2 m/400 kg) that comes with a double slewing motor, a GR30 rotator, an FB160 grapple and a multi-lever valve. A Mowi parallel crane performs two actions at once (retraction) and has a movement pattern that enables loads to be stacked high. A Mowi crane requires a lower oil flow compared to other cranes. This enables it to be operated at low engine speeds, which saves fuel and the environment and provides a more comfortable noise level in the cab.
More information about Mowi 850 Forest Trailer
Product info
The Mowi 850 has a load capacity of 9 tonnes. A strong and flexible central tube frame facilitates driving and accessibility in the forest. The frame steering increases manoeuvrability and allows the forestry trailer to follow the tractor more smoothly.
The hydraulic telescopic support legs are fully retractable and therefore do not impede access.
As standard, the trailer is equipped with 3 banks and 6 supports.

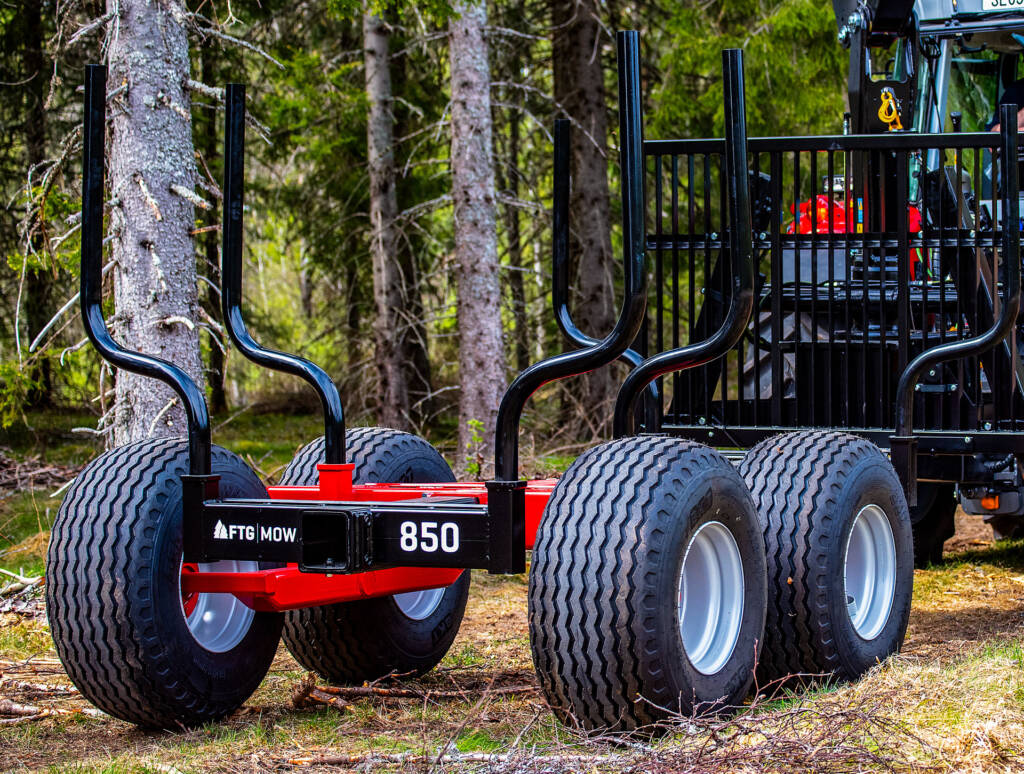

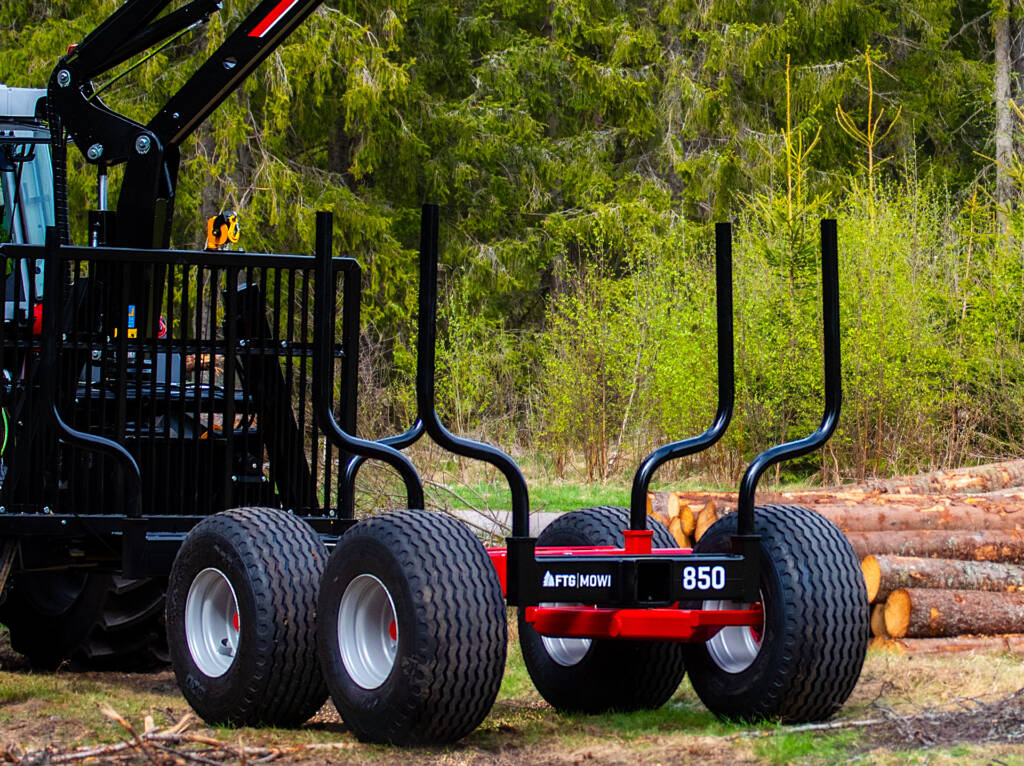

The trailer has an “easy-climb” bogie construction. Thanks to a longer distance between the front and bogie axles, it climbs over obstacles more easily. The axle pins on the bogie carriage are angled for better accessibility. The rear carriage can be moved longitudinally and adapted to the length of the load to achieve a good balance on the vehicle.
All joints have interchangeable bushings.
Technical info
| Non-powered trailer | 850 | ||||||||
| Load space (m²) | 2 | ||||||||
| Load capacity (kg) | 9000 | ||||||||
| Weight (kg) | 1220 | ||||||||
| Central tube (size, mm) | 160x160x8 | ||||||||
| Stub axles (size, mm) | 60×60 | ||||||||
| Standard equipment | |||||||||
| Trailer steering | Yes | ||||||||
| Hydraulic outriggers | Yes | ||||||||
| Stakes (2 per bunk) | 6 | ||||||||
| Tyre size | 400/60×15.5 | ||||||||
| Optional equipment | |||||||||
| Hydraulic outriggers | Standard | ||||||||
| Extra bunk with stakes | Yes | ||||||||
| Separating stakes | No | ||||||||
| Winch (trailer mounted) | Yes | ||||||||
| Winch (manual/radio controlled) | Yes | ||||||||
| Brakes | Disc | ||||||||
| Taillight built into bunk | Yes | ||||||||
| LED taillight | Options | ||||||||
| Alt. tyre size | 400/60×15.5 | ||||||||
| Traction | |||||||||
| Extender stakes | No | ||||||||
| Hydraulic bunks | No | ||||||||
| Toolbox | Yes | ||||||||
| THE RIGHT CRANE FOR THE RIGHT TRAILER | |||||||
| TRAILER/CRANE | P25 | P30 | P30T | P40 | P40T | P50 | P50T |
| 850 | x | x | x | ||||
| 1050 | x | x | x | x | |||
| 1250 | x | x | x | x | |||
| 1050 WD | x | x | x | x | |||
| 1250 WD | x | x | x | x | |||
| 1250 2ND | x | x | x | x | |||
| 1450 WD | x | x | |||||
| A Total length |
B Load length |
C Width, wheels |
D Height, ground to stake top |
E Width, outside stakes |
F Ground clearance |
G Drawbar height |
H Height, crane yoke |
I Height, crane knuckle |
J Pillar height |
K Height, crane base |
|||
| TRAILER | CRANE | Wheel size | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm |
| 850 | P25 | 400/60×15.5 | 5400 | 3650 | 2030 | 1970 | 1910 | 510 | 500 | 2910 | 2950 | 1270 | 1150 |
| 850 | P30 | 400/60×15.5 | 5400 | 3650 | 2030 | 1970 | 1910 | 510 | 500 | 2910 | 2950 | 1270 | 1150 |
| 850 | P30T | 400/60×15.5 | 5400 | 3650 | 2030 | 1970 | 1910 | 510 | 500 | 2910 | 2950 | 1270 | 1150 |
| 1050 | P30 | 15/70×18 | 5180–5810 | 3320–3950 | 2130 | 2180–2270 | 2100 | 620 | 500 | 3040 | 3160 | 1270 | 1260 |
| 1050 | P30T | 15/70×18 | 5180–5810 | 3320–3950 | 2130 | 2180–2270 | 2100 | 620 | 500 | 3040 | 3160 | 1270 | 1260 |
| 1050 | P40 | 15/70×18 | 5180–5810 | 3320–3950 | 2130 | 2180–2270 | 2100 | 620 | 500 | 3270 | 3300 | 1410 | 1260 |
| 1250 | P40 | 15/70×18 | 5220–5885 | 3355–4020 | 2180 | 2370–2505 | 2200 | 660 | 500 | 3280 | 3320 | 1410 | 1280 |
| 1250 | P40T | 500/50×17 | 5220–5885 | 3355–4020 | 2300 | 2340–2475 | 2200 | 650 | 500 | 3280 | 3320 | 1410 | 1280 |
| 1250 | P50 | 500/45×22.5 | 5220–5885 | 3355–4020 | 2300 | 2350–2500 | 2200 | 675 | 500 | 3400 | 3350 | 1540 | 1280 |
| 1050 WD | P30 | 400/55×22.5 | 4945–5575 | 3080–3710 | 2190 | 2210–2350 | 2100 | 690 | 500 | 3040 | 3190 | 1270 | 1280 |
| 1050 WD | P30T | 400/55×22.5 | 4945–5575 | 3080–3710 | 2190 | 2210–2350 | 2100 | 690 | 500 | 3040 | 3190 | 1270 | 1280 |
| 1050 WD | P40 | 400/55×22.5 | 4945–5575 | 3080–3710 | 2190 | 2210–2350 | 2100 | 690 | 500 | 3280 | 3320 | 1410 | 1280 |
| 1250 ND | P40 | 500/45×22.5 | 5555–5885 | 3480–4020 | 2360 | 2370–2505 | 2200 | 660 | 500 | 3280 | 3320 | 1410 | 1280 |
| 1250 ND | P40T | 500/45×22.5 | 5555–5885 | 3480–4020 | 2360 | 2340–2475 | 2200 | 650 | 500 | 3280 | 3320 | 1410 | 1280 |
| 1250 ND | P50 | 500/45×22.5 | 5555–5885 | 3480–4020 | 2360 | 2350–2500 | 2200 | 675 | 500 | 3400 | 3350 | 1540 | 1280 |
| 1250 WD | P40 | 500/45×22.5 | 5190–5855 | 3325–3990 | 2300 | 2380–2500 | 2200 | 690 | 500 | 3280 | 3320 | 1410 | 1300 |
| 1250 WD | P40T | 500/45×22.5 | 5190–5855 | 3325–3990 | 2300 | 2380–2500 | 2200 | 690 | 500 | 3280 | 3320 | 1410 | 1300 |
| 1250 WD | P50 | 500/45×22.5 | 5190–5855 | 3325–3990 | 2300 | 2380–2500 | 2200 | 690 | 500 | 3400 | 3350 | 1540 | 1300 |
| 1450 WD | P50 | 500/60×22.5 | 5970–6450 | 3900–4380 | 2370 | 2850 | 2380 | 540 | 500 | 3650 | 3750 | 1540 | 1500 |
| 1450 WD | P50T | 600/55×22.5 | 5190–5855 | 3325–3990 | 2500 | 2850 | 2380 | 540 | 500 | 3650 | 3750 | 1540 | 1500 |
